SoundTown Carme U208W G3
SoundTown Carme U208W G3, ηχείο δύο δρόμων σε ξύλινη καμπίνα με δύο woofer 8″ και κόρνα τιτανίου 1.4″ 33mm, ισχύς 350Watt 1400W peak, διασπορά 900 Χ 500, απόκριση συχνότητας 60-20000Hz, 126dB max SPL. Είσοδοι με Type 4-pin Phoenix ρύθμιση τοποθέτησης με μεταλλική βάση, Διαστάσεις: YxΠxΒ 247x615x237 mm. Bάρος 12,8kg. Xρώμα μαύρο,
Carme U208W G3

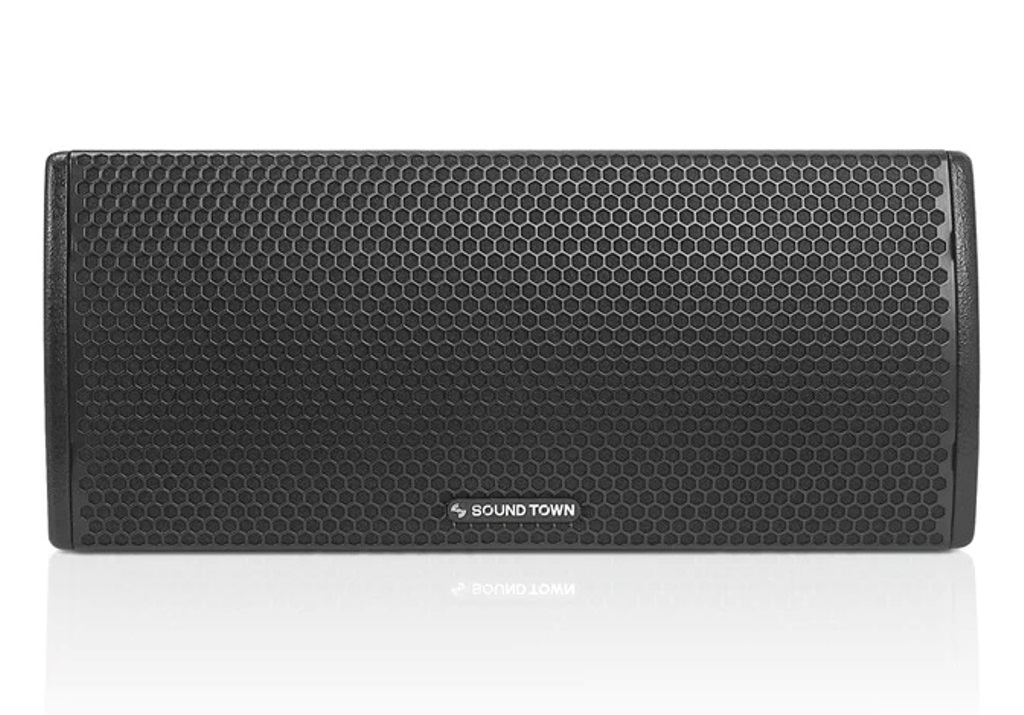

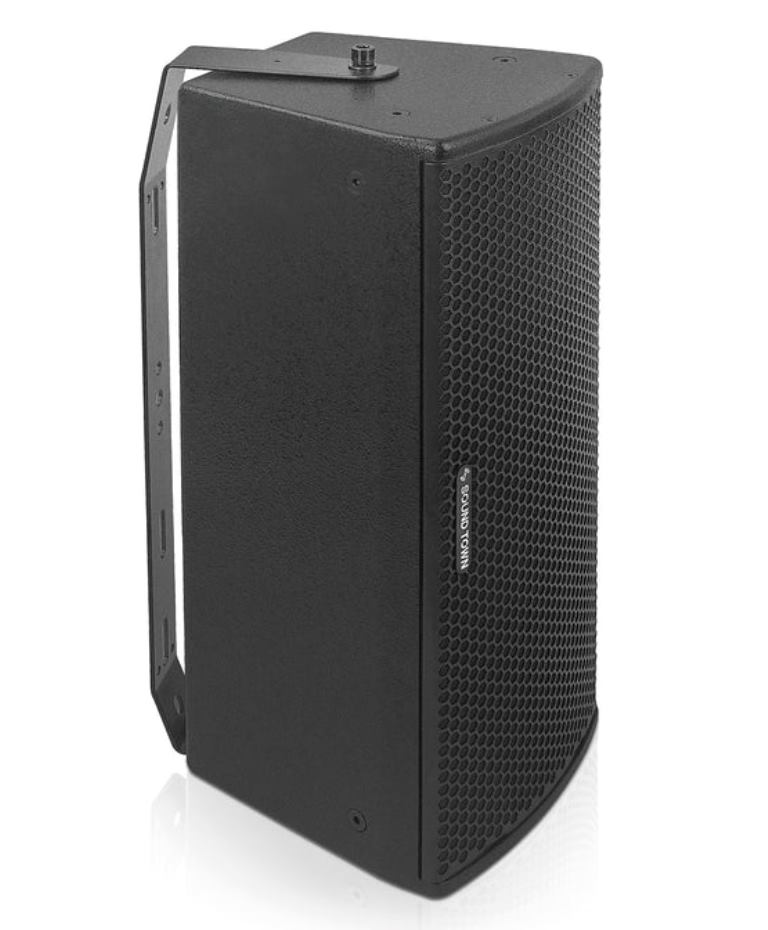

The Sound Town CARME Series CARME-U208BG3 is a professional-grade, full-range 2-way loudspeaker engineered for versatility across a wide variety of small to medium-sized venues. Whether you’re outfitting a church, restaurant, meeting room, courtyard, or stage, this speaker delivers reliable performance as a main PA or stage monitor. Its compact yet powerful design ensures it fits seamlessly into both portable and permanent sound systems.
Installation is made easy with a rotatable 90° x 60° horn and flexible mounting options. The CARME-U208BG3 supports both vertical and horizontal configurations, and can be pole-mounted using its universal 35mm socket or installed on a wall (CWB-1A-PAIR sold separately). This adaptability allows for optimal positioning in any environment, making it a favorite among installers and event professionals.
Delivering exceptional sound, the speaker features dual 8″ woofers and a 1.4″ titanium compression driver, offering a broad frequency response from 55Hz to 20KHz. With 300W RMS and 600W program power at 4 ohms, it packs serious output. Ruggedly built with 5/8” painted plywood and a heavy-duty metal grille, the CARME-U208BG3 is road-ready, durable, and easy to transport—perfect for both fixed installations and mobile gigs.
VERSATILE APPLICATIONS: A professional-grade full-range 2-way loudspeaker for meeting rooms, courtyards, churches, restaurants, stages, and any other small to medium venues. Perfect for either main sound reinforcement or monitoring applications.

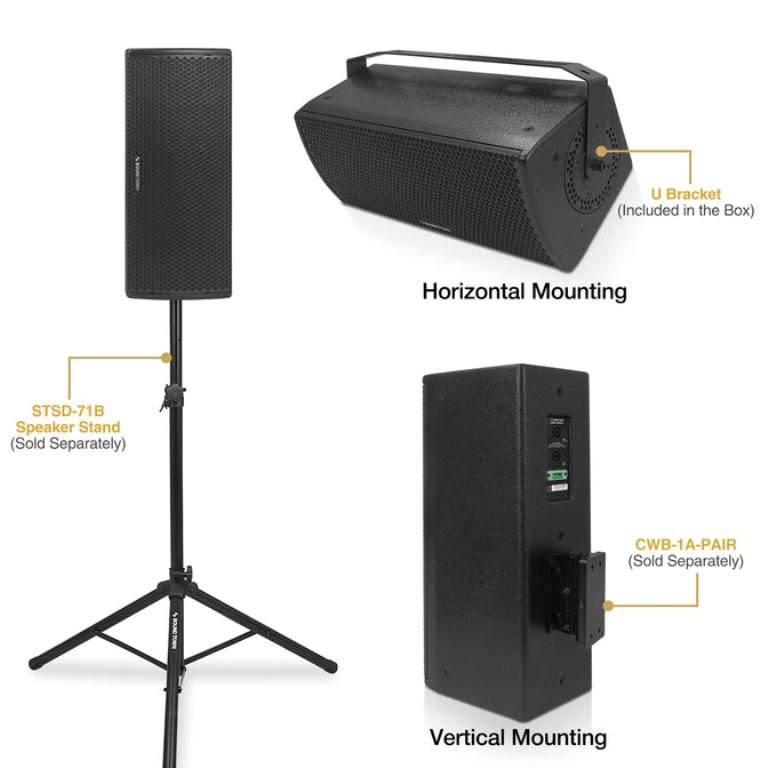

OPTIMIZED FOR INSTALLATIONS: The CARME-U208BG3 speaker features a 90° x 60° rotatable horn and supports both vertical and horizontal mounting options (CWB-1A-PAIR sold separately), allowing for flexible setup and speaker placement. The multipurpose mounting adapter can be used either as a universal 35mm socket for a speaker stand pole or for fixed installation with a wall mount bracket.
STELLAR SOUND QUALITY: Two top-quality 8” woofers and one 1.4” titanium compression driver deliver powerful volume with exceptional clarity, offering a broad frequency response of 55Hz-20kHz.
MASSIVE POWER: 300W RMS, 600W program power handling (4-Ohm). Two speakons and barrier strip input connectors; Crossover: 18 dB per octave 2500 Hz high power with dual glass bulb tweeter protection.
STURDY CONSTRUCTION: 5/8” textured and painted plywood, with a heavy-duty metal grille. The small form factor makes it easy to transport without sacrificing durability. With the heavy-duty metal grille and sturdy construction, it is built to handle touring applications.
Τεχνικά Χαρακτηριστικά
Specifications
Model CARME-U208BG3 (black), CARME-U208WG3 (white)
Active / Passive Passive
Frequency Range 55 Hz – 20 kHz
Frequency Response 60 Hz – 20 kHz
Sensitivity 98 dB
SPL Max 130 dB
Dispersion 90º x 60º (H x V) / 90º x 60º (V x H)
Configuration 8″ multi-angle full-range loudspeaker
Transducer LF: 2 x 8″, HF: 1 x 1.4″ titanium compression driver
Voice Coil –
Magnet –
Impedance 4Ω nominal
Power Handling 300 RMS / 600W Program
Enclosure Material High-grade 100% birch plywood
Mounting Hardware U-bracket
Finish Texture coating
Grill & Rigging Component Steel with anti-corrosion coat
Amplifier –
Input SPEAKON, Barrier Strip
Output SPEAKON, Barrier Strip
Signal Processing –
Control –
Indicator –
Voltage 100V-240V (50-60 Hz)
Crossover Parts# –
High Frequency Driver Parts# –
Low Frequency Woofer Parts# STLF-CARME108
Replacement Horn ST-U208-HORN
Dimension & Weight
Product Width (in.) 9.2″ Package Width (in.) 12.4″
Product Height (in.) 22.0″ Package Height (in.) 25.4″
Product Depth (in.) 9.4″ Package Depth (in.) 13.0″
Product Weight (lb.) 29.7 lbs Package Weight (lb.) 32.3 lbs,
