Sound Town Carme U10MB
SoundTown CARME U10MB Speaker 10″ Coaxial Passive 2-way, Pro PA DJ Stage Commercial Monitor Surface-Mount Speaker, Black, Live Sound, Bar, Church, ηχείο δύο δρόμων σε ξύλινη καμπίνα ομοαξονικό με woofer 10″ και κόρνα τιτανίου 1″ 25mm, ισχύς 200Watt 400W peak, διασπορά 1000 Χ 1000, απόκριση συχνότητας 52-20000Hz, 121dB max SPL. Είσοδοι με Type 4-pin Phoenix ρύθμιση τοποθέτησης με μεταλλική βάση, Διαστάσεις: YxΠxΒ 32x40x28.5 cm. Bάρος 11kg. Xρώμα μαύρο,

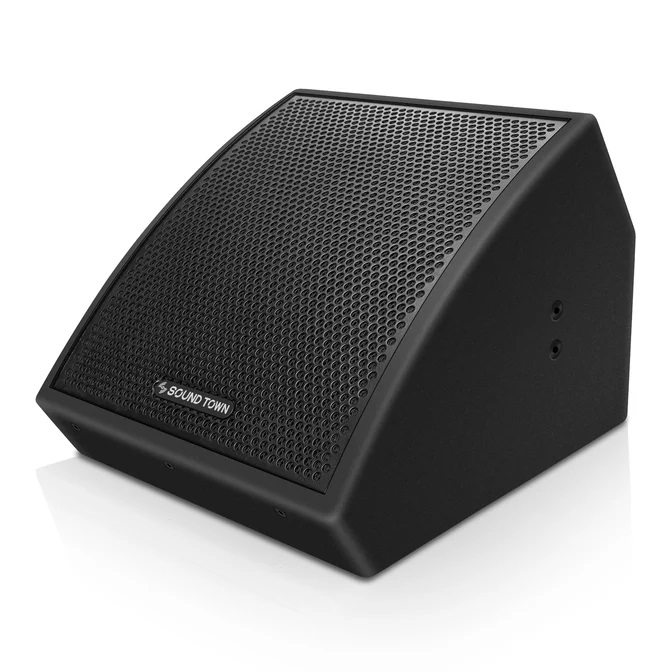

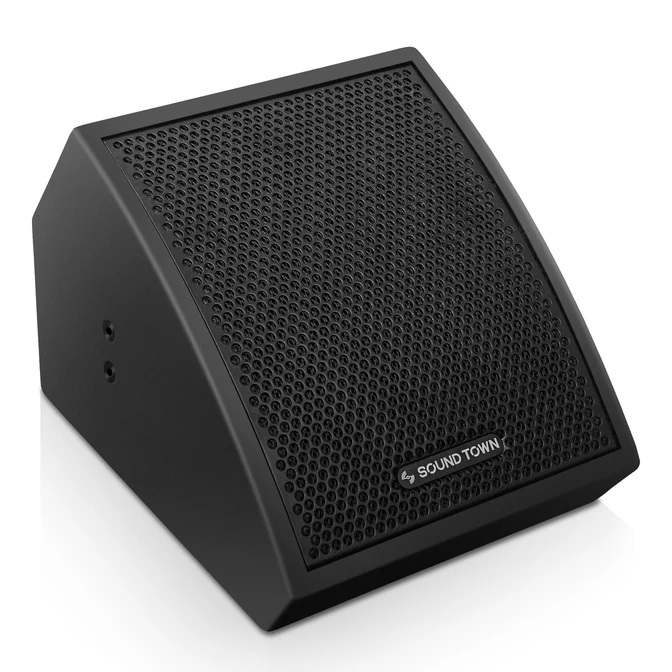

The Sound Town CARME Series CARME U10MB, is a passive 200 Watts stage and installation monitor speaker. Equipped with a customized high-efficiency coaxial driver, which includes one 10“ main driver and one 1” compression driver at the center, it delivers clear stellar sound in high sensitivity and characterized by smooth, flat frequency response coupled with low distortion, the even conical coverage is great for sound feedback on your stage.

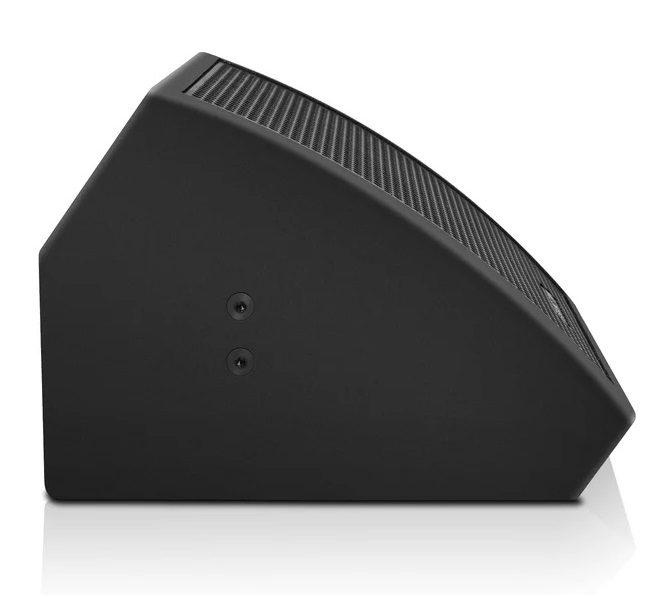

The CARME-U10MB has a very compact low profile design which does not visually dominate stage. With the provided U bracket, it can also be surface mounted against wall, ceiling or corner. It’s ideal not only for live stage, but also for installations of churches, bars, restaurants, meeting rooms and auditoriums.
Carme U10MB Coaxial Speaker
PREMIUM SOUND AND EVEN COVERAGE: With a customized high-efficiency coaxial driver, which includes one 10“ main driver and one 1” compression driver at the center, the CARME-U8MB delivers centralized sound for consistent monitoring
HIGH SENSITIVITY IN COMPACT DESIGN: The stage monitor’s high sensitivity allows your to use a small amplifier to obtain high output level. It handles 150W RMS power output and its low profile cabinet design does not visually dominate stage or installation venues

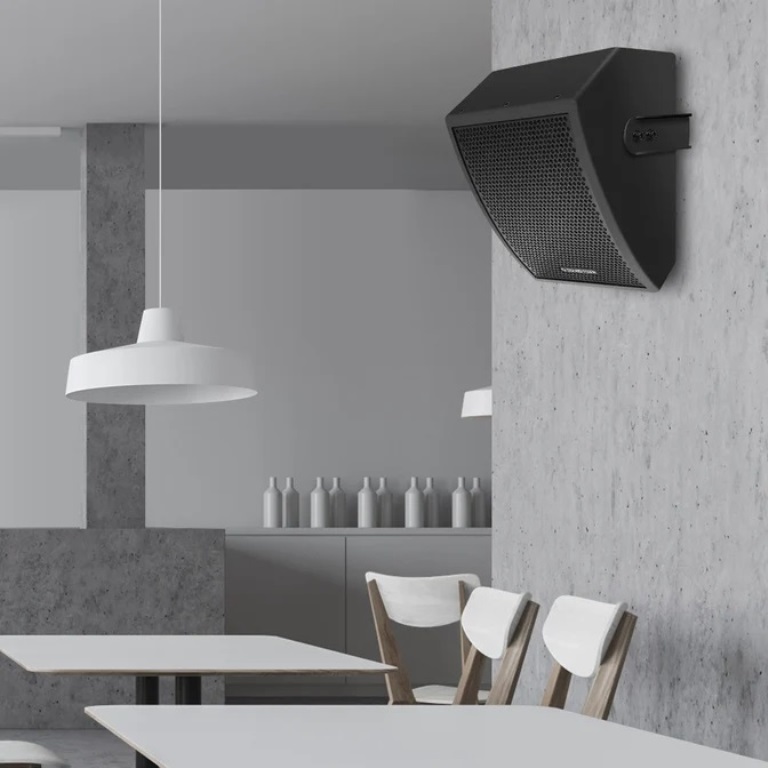

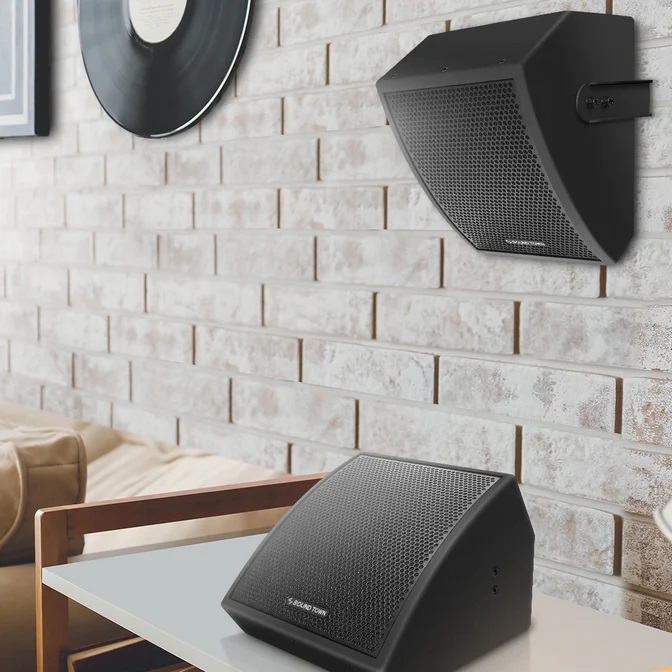

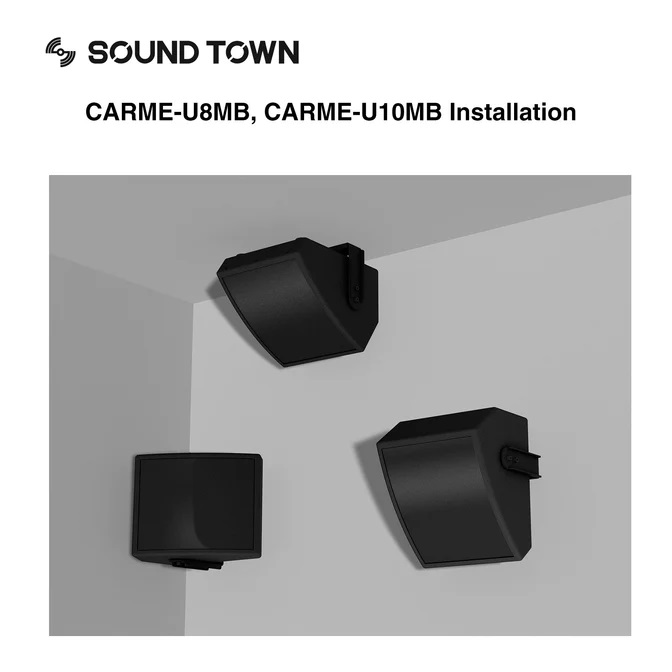

MULTI-POSITION: With the provided U bracket, the CARME-U8MB can be surface mounted tightly against a wall, ceiling or corner, which provides great flexibility for different applications; It’s ideal not only for live stage, but also for installations of churches, bars, restaurants, meeting rooms and auditoriums
STURDY CONSTRUCTION: The 5/8” textured and painted plywood provides great protection and stability with heavy-duty metal grille. The small form factor makes it easy to transport
Τεχνικά Χαρακτηριστικά
Specifications
Model CARME-U10MB (black), CARME-U10MW (white)
Active / Passive Passive
Frequency Range 52 Hz – 20 kHz

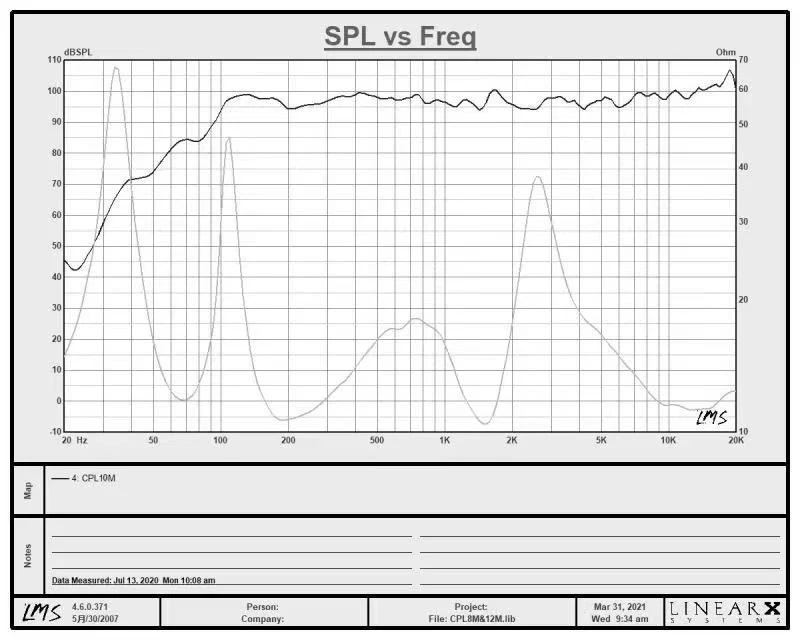

Frequency Response 58 Hz – 20 kHz
Sensitivity 98 dB (Passive)
SPL Max 121 dB
Dispersion 100° conical
Configuration 10″ full-range 2-way stage monitor w/ U mounting bracket

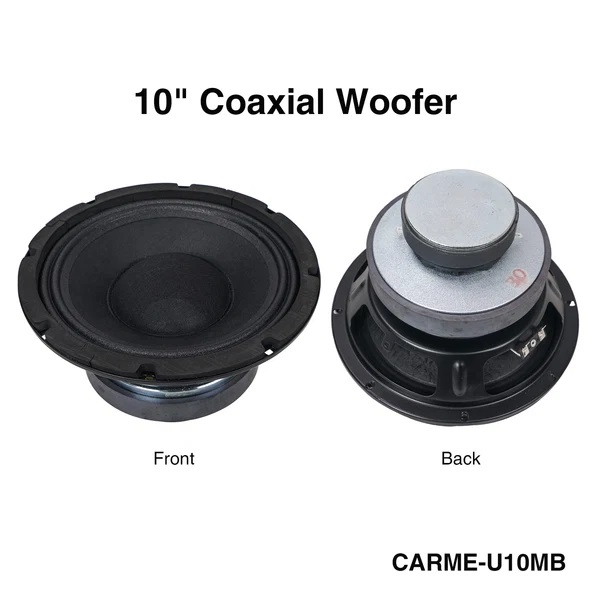

Transducer LF: 1 x 10″, HF: 1 x 1″ coaxial compression driver
Impedance 8Ω
Power Handling 200W RMS / 400W Peak
Cabinet Construction High-grade 100% birch plywood
Mounting U bracket
Finish Texture coating (RAL colors available)
Grill & Rigging Component Steel with anti-corrosion coat
Amplifier –

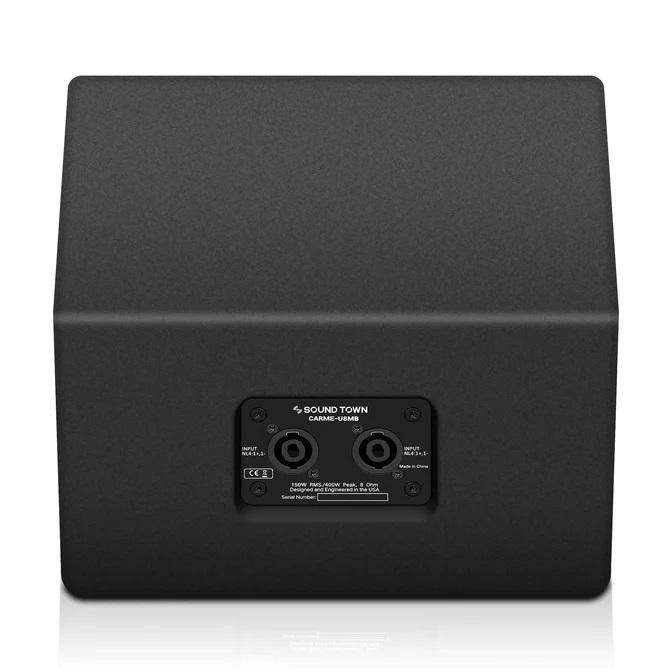

Input Speakon
Output Speakon
Control –
Indicator –
Voltage –
High Frequency Driver Parts# MHF-014
Low Frequency Woofer Parts# ST-COX-10
Dimension & Weight
Product Width (in.) 15.7″
Package Width (in.) 18.9″
Product Height (in.) 12.6″ Package Height (in.) 15.9″
Product Depth (in.) 11.1″
Package Depth (in.) 14.3″
Product Weight (lb.) 24.2 lbs
Package Weight (lb.) 27.3 lbs
,
