SoundTown Carme U108W G3

SoundTown Carme U108W G3, ηχείο δύο δρόμων σε ξύλινη καμπίνα με woofer 8″ και κόρνα τιτανίου 1.4″ 33mm, ισχύς 175Watt 350W peak, διασπορά 100⁰ Χ 55⁰, απόκριση συχνότητας 65-18000Hz, 120dB max SPL. Είσοδοι με Type 4-pin Phoenix ρύθμιση τοποθέτησης με μεταλλική βάση, Διαστάσεις: YxΠxΒ 247x389x237 mm. Bάρος 9.2kg. Xρώμα μαύρο,

Carme U108W G3

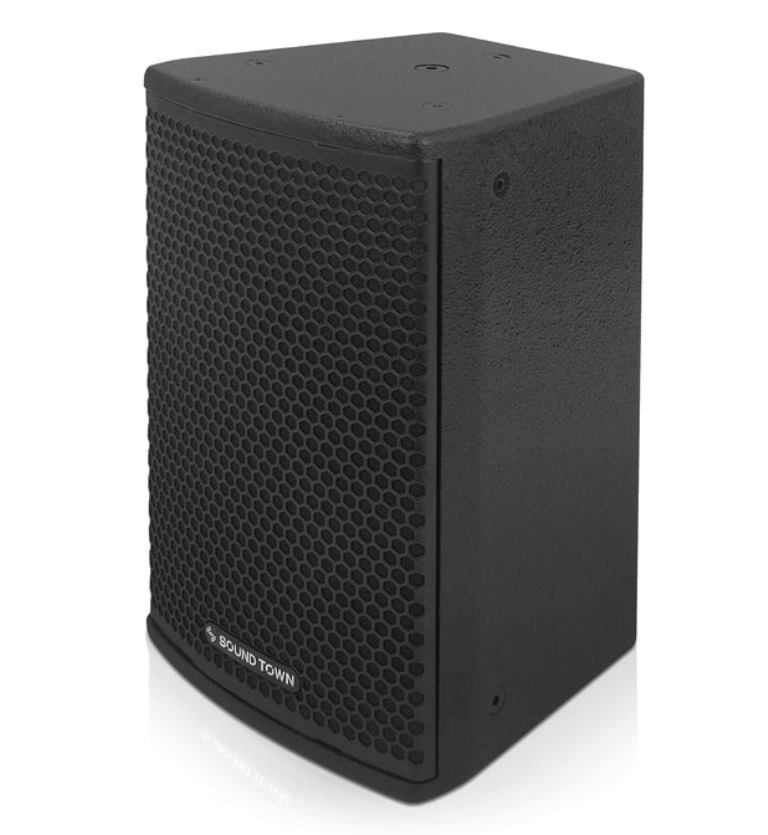

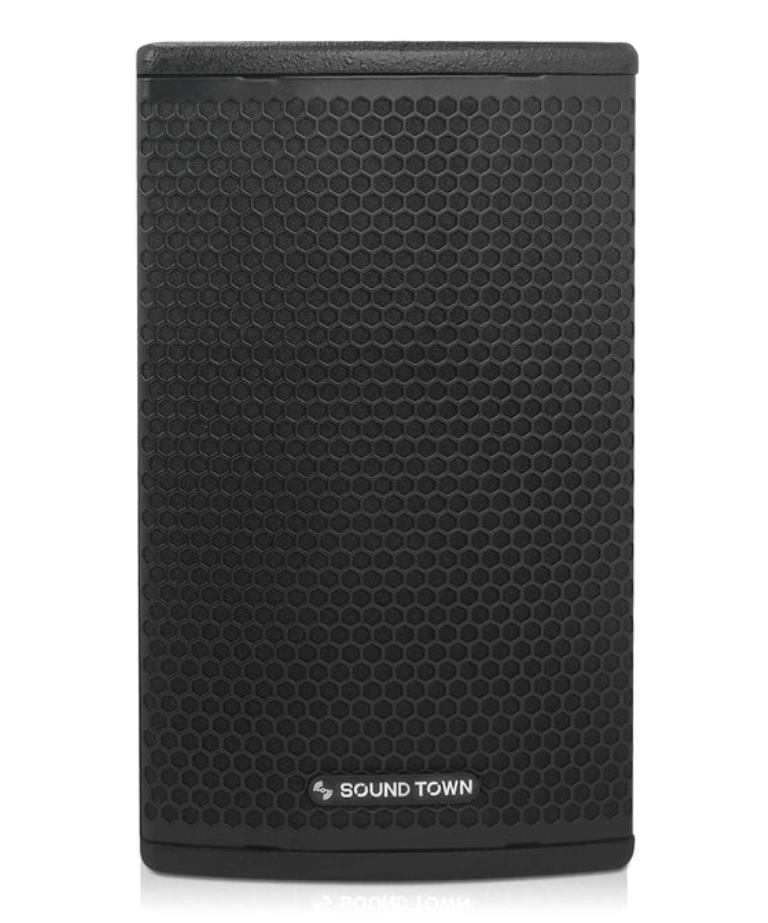

The CARME-U108BG3 is a professional-grade full-range 2-way loudspeaker designed for both fixed installations and portable sound reinforcement. Featuring a 90° x 60° rotatable horn and multiple U-bracket mounting options, it provides flexible positioning for optimal sound coverage. The multipurpose mounting adapter can either be used as a universal 35mm socket for a speaker stand pole or for fixed installation with a wall mount bracket.

Engineered for stellar sound performance, the CARME-U108BG3 is equipped with an 8” woofer that delivers deep, punchy low frequencies, paired with a 1.4″ titanium compression driver for crisp and detailed highs. With a power handling of 175W RMS and 350W program at 8Ω, this speaker delivers consistent, high-quality audio suitable for both main PA and monitoring applications. Its flexible connectivity options, including two Speakons (NL4) and a 4-pin Euroblock terminal, ensure seamless integration into any professional sound system.

Built to withstand demanding environments, the CARME-U108BG3 features a durable 5/8” textured and painted plywood cabinet with a heavy-duty metal grille, offering exceptional protection and longevity. Despite its sturdy construction, its compact form factor allows for easy transport, making it an excellent choice for touring applications. Ideal for meeting rooms, churches, restaurants, courtyards, and small to medium-sized venues, this speaker is a reliable solution for delivering powerful, high-fidelity sound in a range of professional audio environments.

VERSATILE APPLICATIONS: A professional-grade full-range 2-way loudspeaker for meeting rooms, courtyards, churches, restaurants, stages, and any other small to medium venues. Perfect for either main sound reinforcement or monitoring applications.


OPTIMIZED FOR INSTALLATIONS: The CARME-U108BG3 features a 90° x 60° rotatable horn and multiple U-bracket mounting options (vertical and horizontal) for flexible setup. The multipurpose mounting adapter can either be used as a universal 35mm socket for a speaker stand pole or for fixed installation with a wall mount bracket.

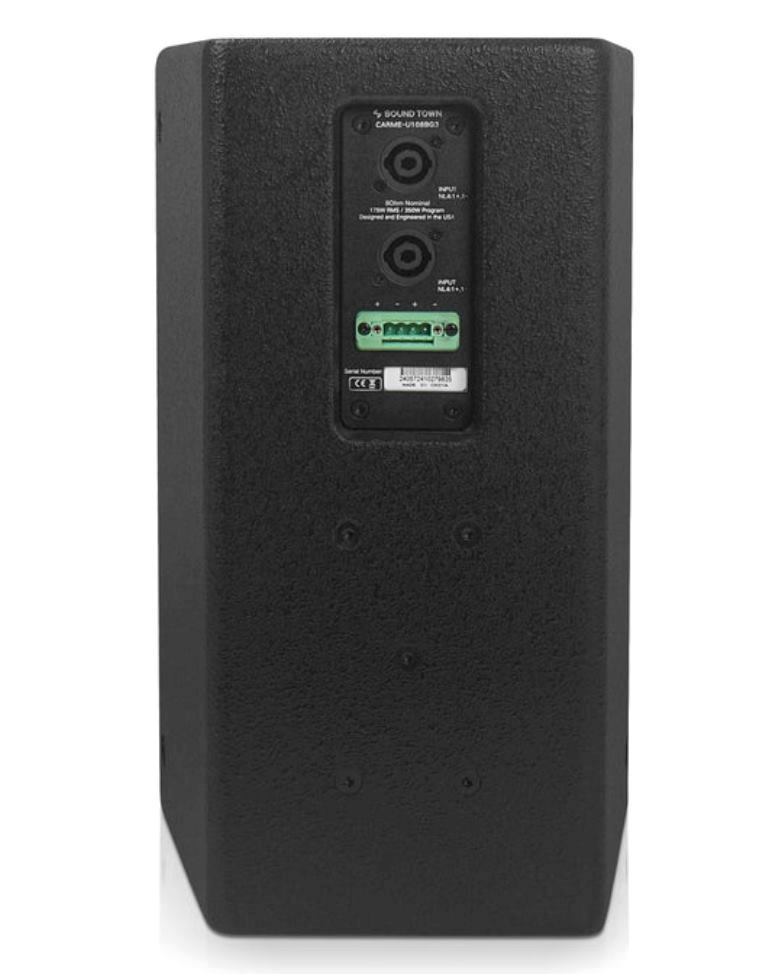

STELLAR SOUND PERFORMANCE: Equipped with an 8” woofer for deep low-frequency response and a 1.4” titanium compression driver for crystal-clear highs, ensuring exceptional audio quality. The CARME-U108BG3 has input connectors, including two Speakons (NL4) and one 4-pin Euroblock terminal, ensuring flexible connectivity options.

RELIABLE POWER HANDLING: Delivers 175W RMS and 350W program power at 8Ω, providing solid, consistent performance for both main sound reinforcement and monitoring applications.

DURABLE CONSTRUCTION: Constructed from 5/8” textured and painted plywood with a heavy-duty metal grille, offering superior durability for both fixed installations and touring use.

VERSATILE APPLICATIONS: A professional-grade full-range 2-way loudspeaker ideal for meeting rooms, churches, restaurants, courtyards, stages, and small to medium-sized venues.

  Γενικές Πληροφορίες

Τεχνικά Χαρακτηριστικά
Specifications

Model    CARME-U108BG3 (black), CARME-U108WG3 (white)
Active / Passive    Passive
Frequency Range    65 Hz – 18 kHz
Frequency Response    65 Hz – 18 kHz
Sensitivity    96 dB
SPL Max    120 dB
Dispersion    100º x 55º (H x V)
Configuration    8″ multi-angle full-range loudspeaker
Transducer    LF: 1 x 8″, HF: 1 x 1.4″ diaphragm
Voice Coil    –
Magnet    –
Impedance    8Ω nominal
Power Handling    175 RMS / 350W Program
Enclosure Material    High-grade 100% birch plywood
Mounting Hardware    U-bracket
Finish    Texture coating
Grill & Rigging Component    Steel with anti-corrosion coat
Amplifier    –
Input    SPEAKON, 4-Pin Euroblock Terminal
Output    SPEAKON, 4-Pin Euroblock Terminal
Signal Processing    –
Control    –
Indicator    –
Voltage    100V-240V(50-60 Hz)
Crossover Parts#    –
High Frequency Driver Parts#    –
Low Frequency Woofer Parts#    STLF-CARME108


Dimension & Weight

Product Width (in.)    9.2″    Package Width (in.)    12.4″
Product Height (in.)    15.3″    Package Height (in.)    18.9″
Product Depth (in.)    9.4″    Package Depth (in.)    13.0″
Product Weight (lb.)    20.0 lbs    Package Weight (lb.)    22.2 lbs.

,
