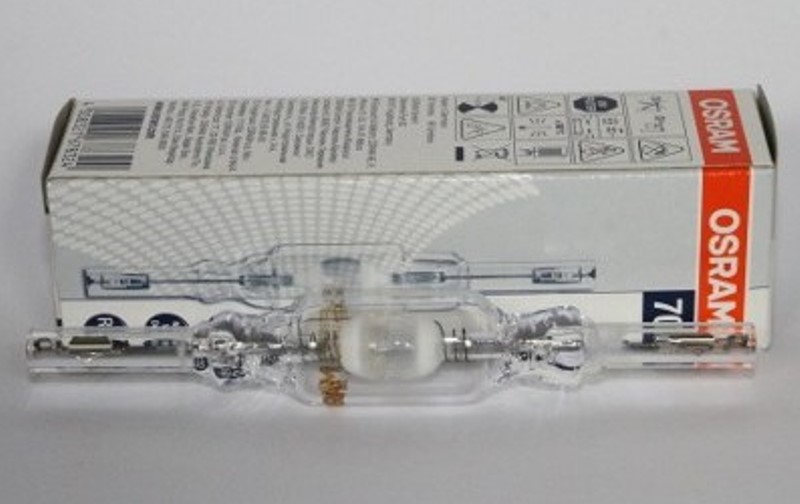

Osram HQI TS Excellence 70W NDL

Osram-HQI-TS-70W-NDL Metal Halide Lamp, λάμπα υψηλής πιέσεως κατάλληλη για κινούμενες κεφαλές ρομποτικά, Photo Optic Lamp,  MARTIN 93V, 2000hr life, socket RX7S, 4200K,

Product benefits
High efficiency
Uniform distribution of light
Good to excellent color rendering
Hot restrike capable
UV values significantly below the maximum permitted thresholds to IEC 61167 thanks to UV filter
Areas of application
Shop interiors, shop windows
Shopping arcades
Foyers, reception areas
Buildings, monuments, bridges
Museums, exhibitions
Exhibition halls and trade fairs
Pedestrian zones, public squares
Parks and gardens
Approved only for use in enclosed luminaires
Outdoor applications only in suitable luminaires

Product features
POWERSTAR® quartz technology
Light colors: warm white (WDL), neutral white (NDL), daylight (D), cool daylight (CD)

Τεχνικά Χαρακτηριστικά

Electrical data
Nominal wattage    70 W
Construction wattage    82.30 W
Nominal voltage    93 V
Ignition voltage    13.3 kVp 1)
Operating mode    Conventional control gear (CCG) and ignitor, Electronic control gear (ECG)
Nominal current    0.95 A
PFC capacitor at 50 Hz    12 µF
1) Minimum / Maximum
Photometrical data
Luminous flux    6100 lm
Luminous efficacy    74 lm/W
Color temperature    4200 K
Color rendering index Ra    ≤ 78
Light color    742
Rated LLMF at 2,000 h    0.92
Rated LLMF at 4,000 h    0.90
Rated LLMF at 6,000 h    0.85
Rated LLMF at 8,000 h    0.78
Rated LLMF at 12,000 h    0.73
UV protection    Yes
Dimensions & Weight
Overall length    117.00 mm
Light center length (LCL)    57,0 mm
Diameter    19,0 mm
Product weight    17.00 g

,
