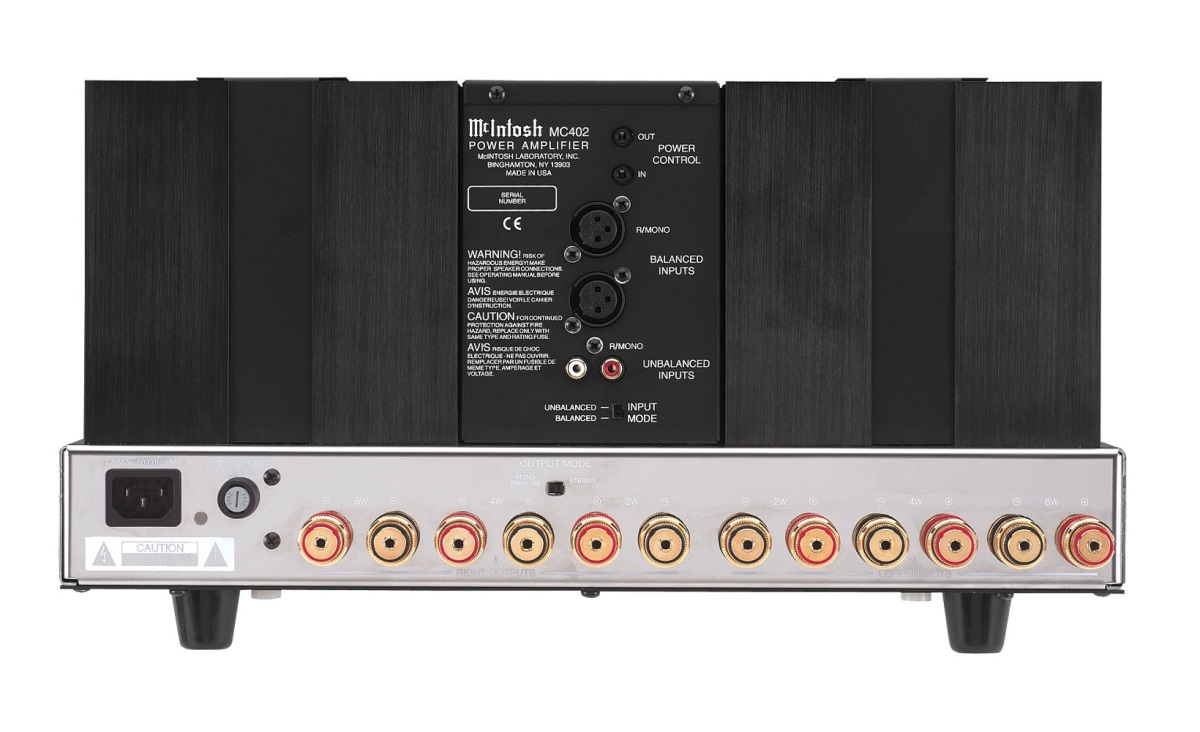

McIntosh MC402

McIntosh MC402 Amplifier, Ενισχυτής τελικός στεροφωνικός ισχύος 2Χ400 W RMS 2,4,8 Ω, ή 800 Watt MONO 1,2,4 Ω, Είσοδοι Balanced – Unbalanced, είσοδος έξοδος τηλεχειρισμού, αρμονική παραμόρφωση 0.005%, S/N below rated output 122dB, Dynamic Headroom 3.0dB, Damping Factor >40 Wideband, Rated Power Band 20Hz to 20kHz, Autoformer Εξόδου, διαστάσεις ΠxΥxΒ 44×23.9×50.8cm, Βάρος 50 kg, McIntosh MC402 ***** NOS, καινούργιος, Παρακαλούμε επικοινωνήστε στο 210 3845676 για επιβεβαίωση του αποθέματος και τιμής, Αποστολές εμπορευμάτων σε όλη την Ελλάδα, Δυνατότητα Διακανονισμού – Δόσεων – Ανταλλαγών, Εγγύηση 3 Ετη,

Fully Balanced Differential
Design New 3D Glass Panel Design
Exclusive McIntosh Output Autoformer&
Exclusive McIntosh Power Assurance System
Power Guard& Clipping Protection
Sentry Monitor& Current Protection
Thermal Sensors
DC Failure Protection
Turn-On Delay
Soft Start Inrush Protection
Fiber-Optic Light Diffuser Illumination
Illuminated Peak-Responding Wattmeters
Balanced Connections
Remote Power Control

Producing a minimum 400 watts per channel in stereo, 800 watts in mono, the MC402 delivers power that is fully balanced from input to speaker output. The extraordinary quad-differential design of the MC402 actually consists of four complete amplifier circuits. Each channel contains two amplifier circuits, each the mirror image of the other, whose outputs are combined in the unique McIntosh Output Autoformer® resulting in totally balanced operation from input to speaker output and the cancellation of virtually all noise and distortion. The exclusive McIntosh Output Autoformer® is a handcrafted matching device that provides an ideal impedance match for all speaker types regardless of their rated impedance. Any departure from an optimum impedance match increases stress on the amplifier which threatens a rise in distortion as well as a reduction in the life expectancy of the amplifier. McIntosh Output Autoformers® enable the MC402 to operate at maximum efficiency and to always deliver full power, without stress, to any type of louds,

Γενικές Πληροφορίες    Γενικές Πληροφορίες    Χρήσεως Πληροφορίες,

παρουσίαση Ηxoς 12 2004    παρουσίαση Highfidelity  02 2008 ,

Τεχνικά Χαρακτηριστικά

RMS POWER OUTPUT
400W min. (stereo) or 800W min. (mono) sine wave continuous average power output from 20Hz-20,000Hz

FREQUENCY RESPONSE
20Hz to 20kHz, +0 / -0.25dB  10Hz to 100kHz, +0 / -3.0dB

TOTAL HARMONIC DISTORTION
0.005% max. at any level from  250mW to rated power output
INTERMODULATION DISTORTION
SMPTE 0.005% maximum if instantaneous peak output does not exceed twice the output rating

A-WEIGHTED SIGNAL-TO-NOISE RATIO
Unbalanced: 94dB  (120dB below rated output)
Balanced: 98dB  (124dB below rated output)

INPUT IMPEDANCE
10,000 ohms (unbalanced)
20,000 ohms (balanced)
OUTPUT LOAD IMPEDANCE
Terminals for 8, 4, or 2 ohms (stereo)
Terminals for 1, 2, or 4 ohms (mono)

INPUT SENSITIVITY
2.0V unbalanced 4.0V balanced
WIDE BAND DAMPING FACTOR Greater than 40
DYNAMIC HEADROOM 2.1dB

RATED POWER BAND 20Hz to 20kHz
POWER GUARD&
Clipping is prevented and THD does not exceed 2% with up to14dB overdrive at 1kHz

OVERALL DIMENSIONS (H X W X D) 17 1.2 (44.45 cm) x 9 7/16 (23.97 cm) x 20 (50.8 cm)

WEIGHT
110.5 lbs. (50.1kg) net 143.5 lbs. (65.1kg) boxed,
