Goldring G 1012GX

Goldring G1012GX Cartridge, Κεφαλή κινητού μαγνήτου MM (Moving Magnet). Cantilever Aluminium, ελλειπτική βελόνα Tracking Radius 6 µm, Απόκριση συχνότητας 20 Hz – 20 kHz ± 3 dB, Channel Imbalance 1.0 dB max at 1 kHz, Ευαισθησία 5 mV ± 3 dB at 5 cm/s, γωνία αναγνωσης 24 °, αντίσταση φορτίου 47 kΩ, Εξοδος 6.5mV. παρέχει ισορροπημένο και καθαρό στις υψηλές συχνότητες ήχο, κεφαλή γενικής χρήσης.

Goldring 1012GX

This hand-built cartridge uses the acclaimed Gyger II nude diamond stylus. A fine-line elliptical type with a 6 µm small radius it gives smooth, extended highs, low distortion and reproduces a highly detailed and dynamic sound. Advanced diamond tip polishing ensures excellent tracking ability and reduces record wear. Because it fills the record groove more completely due to its larger major radius, the Gyger II represents a major upgrade over normal elliptical stylus types.

Low Mass Pocan® Body
The 1000 series uses a strong one piece body which holds the fixed parts securely in place. Made from a special type of ultra-rigid, glass reinforced polyester called Pocan, the body can be tightly bolted to the head shell for maximum efficiency and optimum sound quality. The user replaceable stylus carrier slots tightly into the body with a locating pin preventing unwanted vibrations which would otherwise colour the sound. An integral mu-metal can keeps the generator parts shielded from hum-inducing stray magnetic fields. Because Pocan has a high strength-to-mass ratio, the overall mass of the G1000 series cartridges is kept below 6.5 g. Low mass and moderate compliance keep the natural arm/cartridge resonance within safe limits for easy matching to a wide range of tonearms.

High Efficiency Magnetic Circuit
Finely etched mu-metal is laminated to form the pole pieces around which are fitted two formerless coils of four thousand turns each. This unique design reduces mass and also makes for a very efficient magnetic circuit producing a higher than average output. This construction also reduces the loss at high frequencies inherent in conventional designs, making for a smooth and extended frequency response.

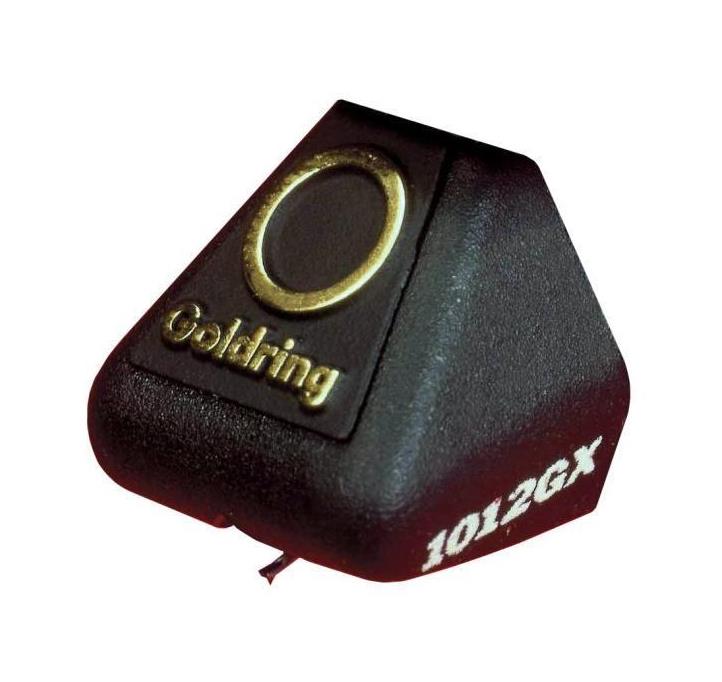

Βελόνα για την κεφαλή Goldring G 1012GX, Τιμή 225€

Τεχνικά Χαρακτηριστικά

Cantilever TypeAluminium
Stylus TypeGyger II (replaceable)
Stylus Tracking Radius6 µm (0.2 mil)
Equivalent Tip Mass0.45 mg
Frequency Response20 Hz – 20 kHz ± 3 dB
Frequency Range12 Hz – 42 kHz
Channel Imbalance1.0 dB max at 1 kHz
Channel Separation25 dB min at 1 kHz
Sensitivity5 mV ± 3 dB at 5 cm/s lateral
Static Compliance24 mm/N (lat); 16 mm/N (vert)
Trackability80 µm
Vertical Tracking Angle24 °
Load Resistance47 kΩ
Load Capacitance125 – 225 pF (175 pF nominal)
Internal Inductance470 mH
Internal Resistance820 Ω
Cartridge Mass6.2 g
Cartridge Mass (inc. fixings)7.6 g
Fixing Centre12.7 mm
Playing Weight1.5 – 2 g (1.75 g nominal)
Cartridge Height17 mm
Recommended Tonearm Effective Mass5 – 25 g,

,
